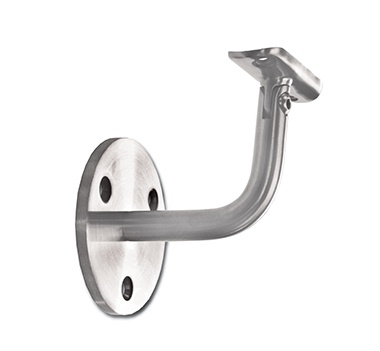

Satin Articulated Wall Bracket

Satin Articulated Wall Bracket

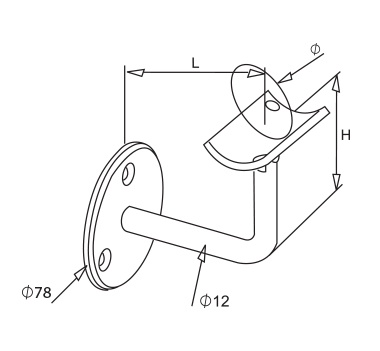

Satin Articulated Wall Bracket Diagram

Create a contemporary look without obscuring the view, this product is also avalable in a mirror polished finish.

Dimensions
For Tube
⌀ (mm)
L
(mm)
H
(mm)

(mm)
Grade Part Code
42.4 66 63 42.4 AISI 304 (Internal) 4200.13.041
42.4 66 63 42.4 AISI 316 (External) 6200.13.041
48.3 66 63 48.3 AISI 304 (Internal) 4800.13.041
48.3 66 63 48.3 AISI 316 (External) 6800.13.041

Recommended Fixings
