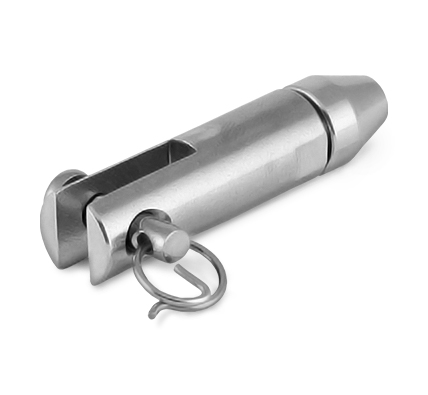

Self Assembly Terminal - Fork

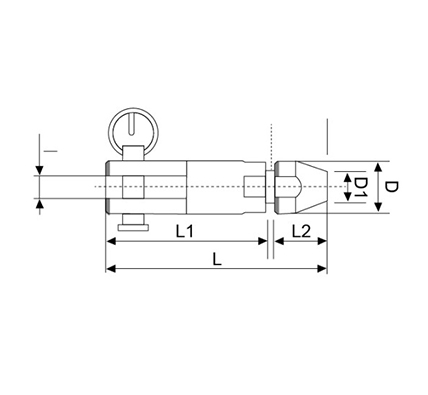

| Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Rope (mm) |
B.L.* (kg) |
L (mm) |
L1 (mm) |
L2 (mm) |
D (mm) |
D1 (mm) |
I (mm) |
Part Code |
| 4Ø | 1.500 | 53 | 40 | 13 | 13 | 7.6 | 5.5 | N/A |
| 5Ø | 2.180 | 55 | 42 | 13 | 15 | 9 | 6.5 | N/A |
| 6Ø | 3.700 | 57 | 44 | 13 | 17 | 11 | 7 | N/A |
| *B.L. = Breaking Load | ||||||||
