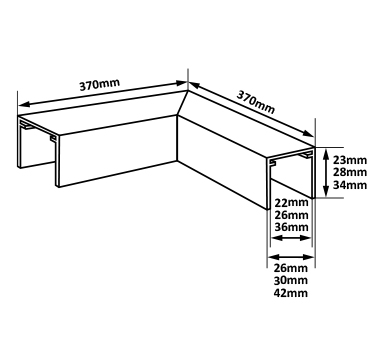

Aluminium U-Profile Slotted Handrail Corner Connector
| Aluminium – U-Profile | ||||||
|---|---|---|---|---|---|---|
| Length To Angle Centre |
Glass Thickness (up to) |
Outer Width (mm) |
Height (mm) |
Slot Width (mm) |
Finish | Part Numbers |
| 370mm | 17.5 mm | 26 | 23 | 22 | Mill Finish | OL11.2210.262.10 |
| 21.5 mm | 30 | 28 | 26 | Mill Finish | OL11.2210.302.10 | |
| 31.5 mm | 42 | 34 | 36 | Mill Finish | OL11.2210.423.10 | |
| 17.5 mm | 26 | 23 | 22 | Plain Aluminium | OL11.2210.262.11 | |
| 21.5 mm | 30 | 28 | 26 | Plain Aluminium | OL11.2210.302.11 | |
| 31.5 mm | 42 | 34 | 36 | Plain Aluminium | OL11.2210.423.11 | |
| 17.5 mm | 26 | 23 | 22 | Stainless Steel Effect | OL11.2210.262.12 | |
| 21.5 mm | 30 | 28 | 26 | Stainless Steel Effect | OL11.2210.302.12 | |
| 31.5 mm | 42 | 34 | 36 | Stainless Steel Effect | OL11.2210.423.12 | |
| 17.5 mm | 26 | 23 | 22 | Colour Coating | OL11.2210.262.13 | |
| 21.5 mm | 30 | 28 | 26 | Colour Coating | OL11.2210.302.13 | |
| 31.5 mm | 42 | 34 | 36 | Colour Coating | OL11.2210.423.13 | |
