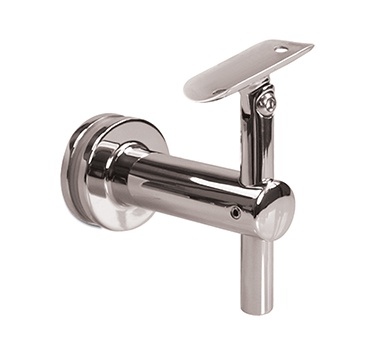

Mirror Polished Articulated Glass Bracket Handrail Support

Mirror Polished Articulated Glass Bracket Handrail Support

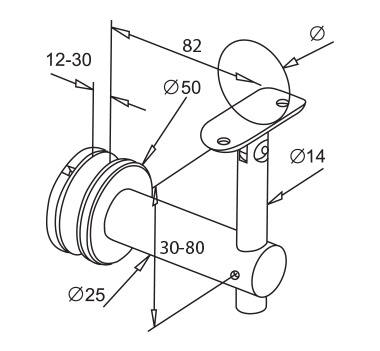

Mirror Polished Articulated Glass Bracket Handrail Support Diagram

Create a contemporary look without obscuring the view, this product is also avalable in a mirror polished finish.

Dimensions
Diameter
Ø (mm)
Ø
(mm)
Grade Part Code
42.4 42.4 AISI 304 (Internal) 4220.16.045MR
42.4 42.4 AISI 316 (External) 6220.16.045MR
48.3 48.3 AISI 304 (Internal) 4826.16.045MR
48.3 48.3 AISI 316 (External) 6826.16.045MR
