0.74 kN Curved Channel - Bend-Fit

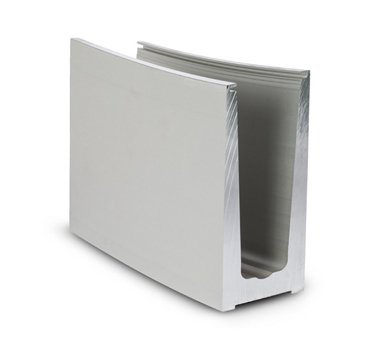

0.74kN Base Fixed Bend-Fit Channel

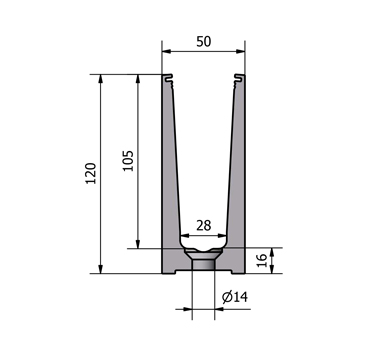

0.74kN Base Fixed Channel Bend-Fit Diagram

Create a contemporary look without obscuring the view.

Base Fixed – Standard Mount
Min. Radius Height Width Length Finish Part Numbers
1000 mm 120 mm 50 mm 3500 mm Brushed Aluminium OL10.6010.003.14
120 mm 50 mm 6000 mm Brushed Aluminium OL10.6010.006.14
Have it your way - with thousands of finish choices. Colour coating or Unfinished. Avalible in and RAL colour. Custom coatings. Aluminium, anodised or mill finished
