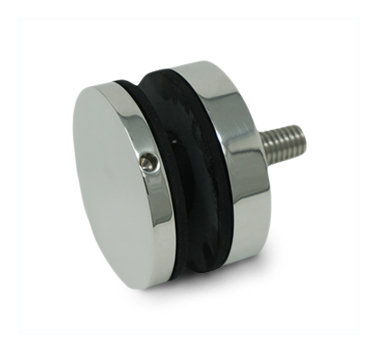

Mirror Polished Glass Adapters

Mirror Polishedh Glass Adapters

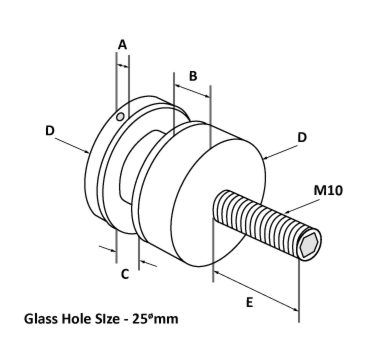

Mirror Polished Glass Adapters Diagram

Create a contemporary look without obscuring the view, this product is also avalable in a mirror polished finish.

Dimensions
Fixing
Type
A
(mm)
B
(mm)
C
(mm)
D
(mm∅)
E
(Max mm)
Part Code
Resin & Bolt 6 10 10-20 52 24 6000.22.010MR
Screw Only 6 10 10-20 52 46 6000.22.020MR
Resin & Bolt 6 10 8-20 45 46 6000.22.012MR
Screw Only 6 10 8-20 45 49 6000.22.022MR
